全球热带气旋监测公报
“安格雷克”向西偏南方向移动
时 间：22日08时（北京时）
海 域：澳大利亚附近海域
命 名：“安格雷克”，ANGGREK
中心位置：南纬12.0度、东经91.6度
强度等级：一级热带气旋
最大风力：8级（18米/秒，相当于我国的热带风暴级）
中心气压：999百帕
参考位置：科科斯群岛偏西方向约570公里的洋面上
变化过程：过去24小时，“安格雷克”由10级减弱到8级
预报结论：“安格雷克”将以每小时5-10公里的速度向西偏南方向缓慢移动，强度逐渐增强。

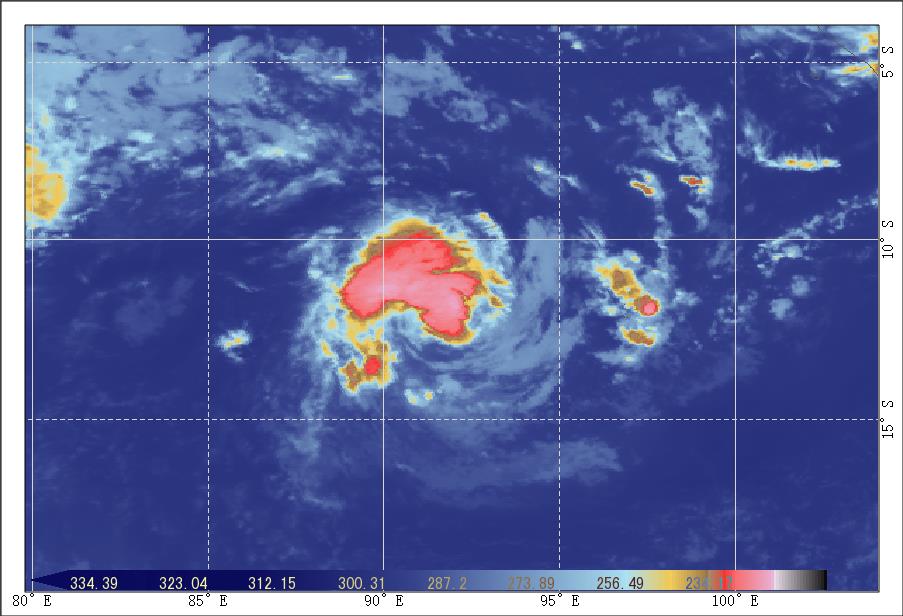

图1 卫星红外监测图像（北京时间2024年01月22日08时00分）
-

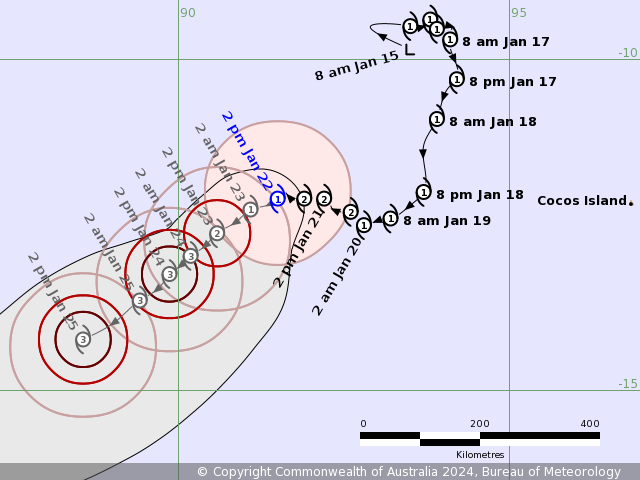

IDW27700 TROPICAL CYCLONE TECHNICAL BULLETIN: AUSTRALIA - WESTERN REGION Issued by AUSTRALIAN BUREAU OF METEOROLOGY TROPICAL CYCLONE WARNING CENTRE at: 0703 UTC 22/01/2024 Name: Tropical Cyclone Anggrek Identifier: 04U Data At: 0600 UTC Latitude: 12.1S Longitude: 91.5E Location Accuracy: within 20nm (35 km) Movement Towards: west (270 deg) Speed of Movement: 1 knots (2 km/h) Maximum 10-Minute Wind: 35 knots (65 km/h) Maximum 3-Second Wind Gust: 50 knots (95 km/h) Central Pressure: 999 hPa Radius of 34-knot winds NE quadrant: 70 nm (130 km) Radius of 34-knot winds SE quadrant: 60 nm (110 km) Radius of 34-knot winds SW quadrant: 60 nm (110 km) Radius of 34-knot winds NW quadrant: 70 nm (130 km) Radius of 48-knot winds NE quadrant: Radius of 48-knot winds SE quadrant: Radius of 48-knot winds SW quadrant: Radius of 48-knot winds NW quadrant: Radius of 64-knot winds: nm ( km) Radius of Maximum Winds: 20 nm (35 km) Dvorak Intensity Code: T3.0/3.0/S0.0/24HRS STT:D0.5/06HRS Pressure of outermost isobar: 1008 hPa Radius of outermost closed isobar: 180 nm (335 km) FORECAST DATA Date/Time : Location : Loc. Accuracy: Max Wind : Central Pressure (UTC) : degrees : nm (km): knots(km/h): hPa +06: 22/1200: 12.2S 91.3E: 035 (060): 040 (075): 996 +12: 22/1800: 12.3S 91.1E: 045 (080): 040 (075): 996 +18: 23/0000: 12.4S 90.9E: 050 (090): 045 (085): 993 +24: 23/0600: 12.6S 90.6E: 050 (095): 050 (095): 994 +36: 23/1800: 13.0S 90.2E: 060 (110): 065 (120): 986 +48: 24/0600: 13.2S 89.9E: 075 (140): 070 (130): 975 +60: 24/1800: 13.6S 89.4E: 100 (180): 080 (150): 971 +72: 25/0600: 14.2S 88.6E: 125 (230): 075 (140): 972 +96: 26/0600: 16.1S 85.4E: 175 (320): 065 (120): 982 +120: 27/0600: 18.2S 81.5E: 230 (430): 055 (100): 987 REMARKS: Tropical Cyclone Anggrek is expected to restrengthen as environmental conditions being to improve. Position is based on animated Vis satellite imagery. Confidence in the position is good. Dvorak DT is 3.0 based on a curved band of 0.7. MET is 3.5 based on a D- trend with PAT 3.0. FT and CI are 3.0 based on PAT. Latest objective aids are: ADT 51 knots, AiDT 35 knots, DPRINT 44 knots (all one-minute means). Intensity is set at 35 knots (10-min mean). Tropical Cyclone Anggrek is still being impacted by easterly wind shear and dry air and could weaken further. However from Tuesday the combination of SSTs around 28 degrees C, increasing outflow due to an upper trough west of the system, decreasing wind shear, and an inflow of mid-level moisture from the north should enable Anggrek to restrengthen. This intensification phase is supported by the majority of numerical models. The position of the upper trough is particularly supportive on Wednesday and Thursday, and the forecast is for Anggrek to intensify into a severe tropical cyclone (category 3). The slow westward movement of the system is due to a weak mid-latitude ridge to the south. The ridge strengthens to the southeast of the system from Wednesday and accelerates Anggrek towards the southwest. The system is forecast to move outside the Australian area of responsibility during Tuesday or Wednesday. Copyright Commonwealth of Australia == The next bulletin for this system will be issued by: 22/1330 UTC.
Time (AWST) Intensity Category Latitude
(decimal deg.)Longitude
(decimal deg.)Estimated Position
Accuracy (km)0hr 2 pm January 22 1 12.1S 91.5E 35 +6hr 8 pm January 22 1 12.2S 91.3E 60 +12hr 2 am January 23 1 12.3S 91.1E 80 +18hr 8 am January 23 1 12.4S 90.9E 90 +24hr 2 pm January 23 2 12.6S 90.6E 95 +36hr 2 am January 24 3 13.0S 90.2E 110 +48hr 2 pm January 24 3 13.2S 89.9E 140 +60hr 2 am January 25 3 13.6S 89.4E 180 +72hr 2 pm January 25 3 14.2S 88.6E 230 -

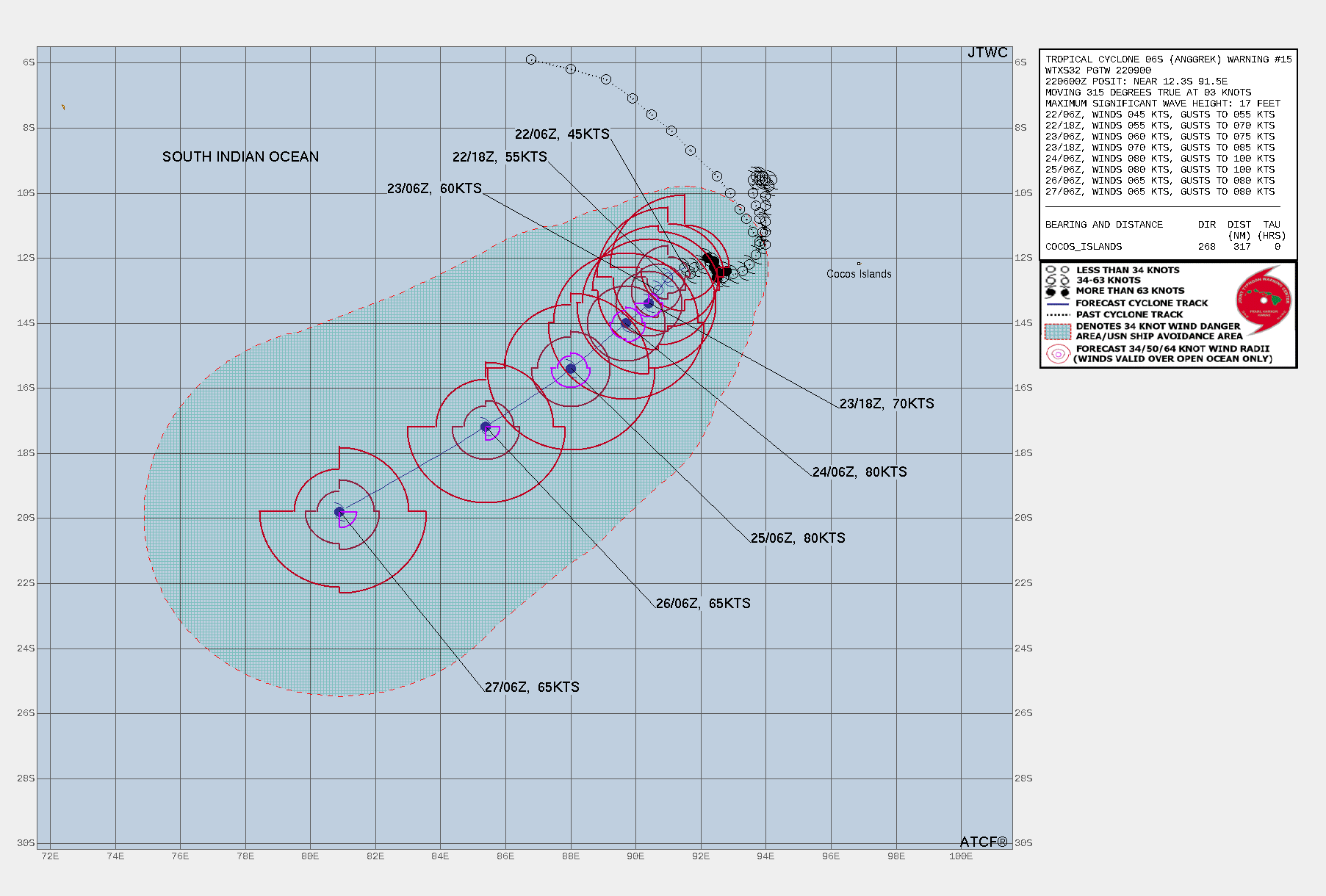

WTXS32 PGTW 220900 MSGID/GENADMIN/JOINT TYPHOON WRNCEN PEARL HARBOR HI// SUBJ/TROPICAL CYCLONE 06S (ANGGREK) WARNING NR 015// RMKS/ 1. TROPICAL CYCLONE 06S (ANGGREK) WARNING NR 015 01 ACTIVE TROPICAL CYCLONE IN SOUTHIO MAX SUSTAINED WINDS BASED ON ONE-MINUTE AVERAGE WIND RADII VALID OVER OPEN WATER ONLY --- WARNING POSITION: 220600Z --- NEAR 12.3S 91.5E MOVEMENT PAST SIX HOURS - 315 DEGREES AT 03 KTS POSITION ACCURATE TO WITHIN 060 NM POSITION BASED ON CENTER LOCATED BY SATELLITE PRESENT WIND DISTRIBUTION: MAX SUSTAINED WINDS - 045 KT, GUSTS 055 KT WIND RADII VALID OVER OPEN WATER ONLY RADIUS OF 034 KT WINDS - 080 NM NORTHEAST QUADRANT 060 NM SOUTHEAST QUADRANT 080 NM SOUTHWEST QUADRANT 135 NM NORTHWEST QUADRANT REPEAT POSIT: 12.3S 91.5E --- FORECASTS: 12 HRS, VALID AT: 221800Z --- 12.6S 91.0E MAX SUSTAINED WINDS - 055 KT, GUSTS 070 KT WIND RADII VALID OVER OPEN WATER ONLY RADIUS OF 050 KT WINDS - 040 NM NORTHEAST QUADRANT 030 NM SOUTHEAST QUADRANT 040 NM SOUTHWEST QUADRANT 060 NM NORTHWEST QUADRANT RADIUS OF 034 KT WINDS - 100 NM NORTHEAST QUADRANT 090 NM SOUTHEAST QUADRANT 100 NM SOUTHWEST QUADRANT 130 NM NORTHWEST QUADRANT VECTOR TO 24 HR POSIT: 215 DEG/ 02 KTS --- 24 HRS, VALID AT: 230600Z --- 13.0S 90.7E MAX SUSTAINED WINDS - 060 KT, GUSTS 075 KT WIND RADII VALID OVER OPEN WATER ONLY RADIUS OF 050 KT WINDS - 050 NM NORTHEAST QUADRANT 040 NM SOUTHEAST QUADRANT 050 NM SOUTHWEST QUADRANT 050 NM NORTHWEST QUADRANT RADIUS OF 034 KT WINDS - 110 NM NORTHEAST QUADRANT 100 NM SOUTHEAST QUADRANT 110 NM SOUTHWEST QUADRANT 120 NM NORTHWEST QUADRANT VECTOR TO 36 HR POSIT: 215 DEG/ 02 KTS --- 36 HRS, VALID AT: 231800Z --- 13.4S 90.4E MAX SUSTAINED WINDS - 070 KT, GUSTS 085 KT WIND RADII VALID OVER OPEN WATER ONLY RADIUS OF 064 KT WINDS - 020 NM NORTHEAST QUADRANT 025 NM SOUTHEAST QUADRANT 025 NM SOUTHWEST QUADRANT 000 NM NORTHWEST QUADRANT RADIUS OF 050 KT WINDS - 060 NM NORTHEAST QUADRANT 060 NM SOUTHEAST QUADRANT 060 NM SOUTHWEST QUADRANT 060 NM NORTHWEST QUADRANT RADIUS OF 034 KT WINDS - 120 NM NORTHEAST QUADRANT 120 NM SOUTHEAST QUADRANT 130 NM SOUTHWEST QUADRANT 120 NM NORTHWEST QUADRANT VECTOR TO 48 HR POSIT: 230 DEG/ 05 KTS --- EXTENDED OUTLOOK: 48 HRS, VALID AT: 240600Z --- 14.0S 89.7E MAX SUSTAINED WINDS - 080 KT, GUSTS 100 KT WIND RADII VALID OVER OPEN WATER ONLY RADIUS OF 064 KT WINDS - 030 NM NORTHEAST QUADRANT 035 NM SOUTHEAST QUADRANT 030 NM SOUTHWEST QUADRANT 025 NM NORTHWEST QUADRANT RADIUS OF 050 KT WINDS - 070 NM NORTHEAST QUADRANT 070 NM SOUTHEAST QUADRANT 070 NM SOUTHWEST QUADRANT 070 NM NORTHWEST QUADRANT RADIUS OF 034 KT WINDS - 130 NM NORTHEAST QUADRANT 140 NM SOUTHEAST QUADRANT 140 NM SOUTHWEST QUADRANT 130 NM NORTHWEST QUADRANT VECTOR TO 72 HR POSIT: 230 DEG/ 05 KTS --- 72 HRS, VALID AT: 250600Z --- 15.4S 88.0E MAX SUSTAINED WINDS - 080 KT, GUSTS 100 KT WIND RADII VALID OVER OPEN WATER ONLY RADIUS OF 064 KT WINDS - 030 NM NORTHEAST QUADRANT 035 NM SOUTHEAST QUADRANT 035 NM SOUTHWEST QUADRANT 025 NM NORTHWEST QUADRANT RADIUS OF 050 KT WINDS - 070 NM NORTHEAST QUADRANT 070 NM SOUTHEAST QUADRANT 070 NM SOUTHWEST QUADRANT 060 NM NORTHWEST QUADRANT RADIUS OF 034 KT WINDS - 140 NM NORTHEAST QUADRANT 150 NM SOUTHEAST QUADRANT 150 NM SOUTHWEST QUADRANT 120 NM NORTHWEST QUADRANT VECTOR TO 96 HR POSIT: 235 DEG/ 08 KTS --- LONG RANGE OUTLOOK: --- 96 HRS, VALID AT: 260600Z --- 17.2S 85.4E MAX SUSTAINED WINDS - 065 KT, GUSTS 080 KT WIND RADII VALID OVER OPEN WATER ONLY RADIUS OF 064 KT WINDS - 000 NM NORTHEAST QUADRANT 025 NM SOUTHEAST QUADRANT 000 NM SOUTHWEST QUADRANT 000 NM NORTHWEST QUADRANT RADIUS OF 050 KT WINDS - 050 NM NORTHEAST QUADRANT 060 NM SOUTHEAST QUADRANT 060 NM SOUTHWEST QUADRANT 040 NM NORTHWEST QUADRANT RADIUS OF 034 KT WINDS - 120 NM NORTHEAST QUADRANT 140 NM SOUTHEAST QUADRANT 140 NM SOUTHWEST QUADRANT 090 NM NORTHWEST QUADRANT VECTOR TO 120 HR POSIT: 240 DEG/ 12 KTS --- 120 HRS, VALID AT: 270600Z --- 19.8S 80.9E MAX SUSTAINED WINDS - 065 KT, GUSTS 080 KT WIND RADII VALID OVER OPEN WATER ONLY RADIUS OF 064 KT WINDS - 000 NM NORTHEAST QUADRANT 030 NM SOUTHEAST QUADRANT 000 NM SOUTHWEST QUADRANT 000 NM NORTHWEST QUADRANT RADIUS OF 050 KT WINDS - 060 NM NORTHEAST QUADRANT 070 NM SOUTHEAST QUADRANT 060 NM SOUTHWEST QUADRANT 040 NM NORTHWEST QUADRANT RADIUS OF 034 KT WINDS - 120 NM NORTHEAST QUADRANT 150 NM SOUTHEAST QUADRANT 140 NM SOUTHWEST QUADRANT 080 NM NORTHWEST QUADRANT --- REMARKS: 220900Z POSITION NEAR 12.4S 91.4E. 22JAN24. TROPICAL CYCLONE 06S (ANGGREK), LOCATED APPROXIMATELY 315NM WEST OF COCOS ISLAND, HAS TRACKED NORTHWESTWARD AT 03 KNOTS OVER THE PAST SIX HOURS. MINIMUM CENTRAL PRESSURE AT 220600Z IS 999 MB. MAXIMUM SIGNIFICANT WAVE HEIGHT AT 220600Z IS 17 FEET. NEXT WARNINGS AT 222100Z AND 230900Z. // NNNN

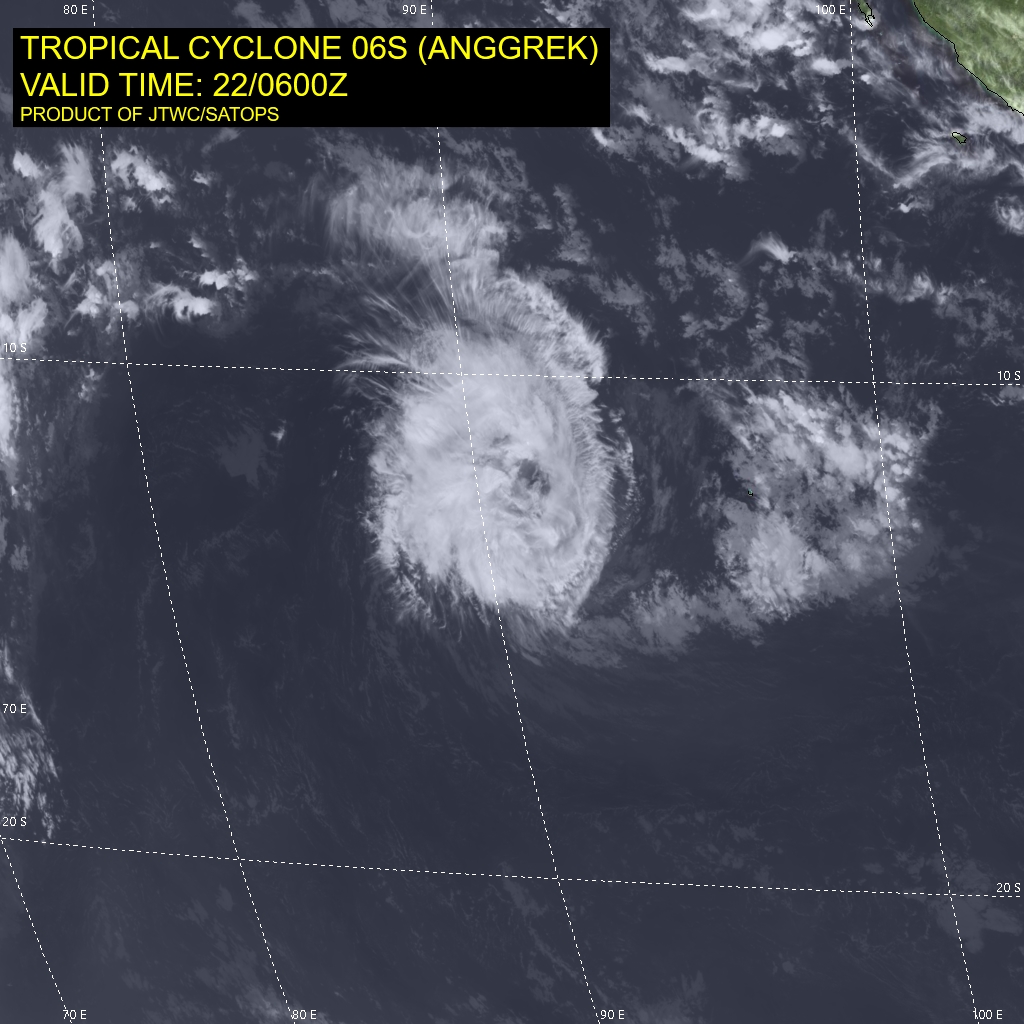

WDXS32 PGTW 220900 MSGID/GENADMIN/JOINT TYPHOON WRNCEN PEARL HARBOR HI// SUBJ/PROGNOSTIC REASONING FOR TROPICAL CYCLONE 06S (ANGGREK) WARNING NR 015// RMKS/ 1. FOR METEOROLOGISTS. 2. 6 HOUR SUMMARY AND ANALYSIS. SUMMARY: INITIAL POSITION: 12.3S 91.5E INITIAL INTENSITY: 45 KTS GEOGRAPHIC REFERENCE: 315 NM WEST OF COCOS ISLAND MOVEMENT PAST 6 HOURS: NORTHWESTWARD AT 03 KTS SIGNIFICANT WAVE HEIGHT: 17 FEET SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) DEPICTS TROPICAL CYCLONE (TC) 06S (ANGGREK) SOMEWHAT QUASI-STATIONARY (QS) IN A WEAK STEERING ENVIRONMENT WITH A NEAR EQUATORIAL RIDGE (NER) TO THE NORTH AND A SUBTROPICAL RIDGE (STR) TO THE SOUTHWEST. THE LOWER-LEVEL CIRCULATION CENTER (LLCC) IS REVEALED ON MSI WITH A BROAD, DEVELOPING EYE-LIKE FEATURE. OUTFLOW ALOFT IS DEGRADED DUE TO DRY AIR ENTRAINMENT FROM THE SOUTHEAST AND MODERATE VERTICAL WIND SHEAR (18KTS PER CIMSS SHEAR ANALYSIS). SKIM AMOUNTS OF TENDRIL-LIKE OUTFLOW IS DRIVEN EQUATORWARD BY VERTICAL WIND SHEAR FROM THE SOUTH. UNFAVORABLE SEA SURFACE TEMPERATURES ARE DEPICTED ON THE 220300Z HAFS-A RUN BETWEEN 22-25C DUE TO UPWELLING AS THE STORM HAS REMAINED IN THE AREA OVER THE PAST FEW DAYS. THE INITIAL POSITION WAS ASSESSED WITH HIGH CONFIDENCE BASED ON A 220315Z AMSU-B 89GHZ MICROWAVE IMAGE REVEALING LOWER-LEVEL BANDS CURVING INTO A MICROWAVE EYE-LIKE STRUCTURE. THE INITIAL INTENSITY WAS ASSESSED WITH LOW CONFIDENCE BASED ON PERSISTENCE, AGENCY FIXES, AND OBJECTIVE FIXES LISTED BELOW. INITIAL WIND RADII BASIS: PERSISTENCE CURRENT STEERING MECHANISM: WEAK STEERING ENVIRONMENT AS THE STORM IS BETWEEN A WEAK NER TO THE NORTH AND WEAK STR TO THE SOUTHWEST. AGENCY DVORAK AND AUTOMATED FIXES: PGTW: T3.0 - 45 KTS KNES: T3.5 - 55 KTS APRF: T3.0 - 45 KTS CIMSS SATCON: 50 KTS AT 0630Z CIMSS ADT: 49 KTS AT 220530Z FORECASTER ASSESSMENT OF CURRENT ENVIRONMENT: MARGINALLY FAVORABLE VWS: 10-15 KTS SST: 27-28 CELSIUS OUTFLOW: WEAK EQUATORWARD ANALYSIS CONFIDENCE: INITIAL POSITION: HIGH INITIAL INTENSITY: LOW INITIAL WIND RADII: LOW 3. FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: TROPICAL CYCLONE 06S (ANGGREK) IS FORECAST WITH MEDIUM CONFIDENCE TO TRACK SOUTHWEST AT 2 KTS THROUGH TAU 36 BEFORE PICKING UP TRACK SPEED SIGNIFICANTLY, TRANSITING AT 10KTS BY TAU 120. THE TRACK SPEED INCREASE IS ANTICIPATED TO BE DRIVEN BY A STR BUILDING TO THE SOUTHEAST, INFLUENCING TRACK SPEED BY TAU 60. INTENSITY IS FORECAST TO CONTINUE TO INCREASE THROUGH TAU 60 WITH A PEAK OF APPROXIMATELY 80KTS. THE INTENSIFICATION IS EXPECTED DUE TO A DECREASE OF WIND SHEAR AND FAVORABLE SEA SURFACE TEMPERATURES AS THE SYSTEM TRANSITIONS OUT OF ITS PREVIOUSLY QUASI-STATIONARY STATE. BEYOND TAU 60, THE APPROACH OF A SHARP MID-LATITUDE TROUGH FROM THE WEST AND A DECREASE IN VERTICAL WIND SHEAR IS ANTICIPATED TO SUPPORT IMPROVED POLEWARD OUTFLOW. HOWEVER, DRY AIR FROM THE EAST IS EXPECTED TO SEPARATE THE CENTRAL VORTEX AT THE MID-LEVEL, CAUSING AN EXPECTED DECLINE IN STORM INTENSITY TO 65KTS BY TAU 96. BETWEEN TAU 96-120, THE ATMOSPHERE IS EXPECTED TO MOISTEN AND OUTFLOW IS EXPECTED TO IMPROVE ONCE AGAIN, ALLOWING FOR THE SYSTEM TO MAINTAIN INTENSITY THROUGH THE END OF THE FORECAST. MODEL DISCUSSION: DETERMINISTIC MODEL GUIDANCE IS IN GOOD AGREEMENT IN TERMS OF TRACK DIRECTION BUT DIFFERS GREATLY IN TRACK SPEED. THE MAXIMUM CROSS-TRACK SPREAD IS 200NM AT TAU 120. THE LEVEL AT WHICH THE STR WILL IMPACT THE STORM'S SPEED VARIES LITTLE AT TAU 48 BUT MODEL DISAGREEMENT INCREASES THE ALONG-TRACK DISTANCE TO 670NM BY TAU 120, WITH UKMET SLOWEST AND GFS FASTEST. INTENSITY FOR TC 06S GENERALLY AGREES ON INTENSIFICATION BETWEEN TAU 0-48 BUT BEGINS TO DISAGREE ON THE RATE AT WHICH THE STORM WILL WEAKEN AND WHETHER OR NOT THE STORM WILL REINTENSIFY. HWRF ANTICIPATES A DRASTIC INTENSIFICATION TO 100KTS BY THE END OF THE FORECAST PERIOD, WHILE COAMPS-TC EXPECTS DISSIPATION TO 30KTS. FORECAST CONFIDENCE: TRACK 0 - 72 HR: HIGH TRACK 72-120 HR: MEDIUM INTENSITY 0 - 72 HR: MEDIUM INTENSITY 72-120 HR: LOW// NNNN
最后于 2024-01-22 18:00:00 被ygsj24编辑 ，原因： -
全球热带气旋监测公报
“安格雷克”向西南方向移动
时 间：22日14时（北京时）
海 域：澳大利亚附近海域
命 名：“安格雷克”，ANGGREK
中心位置：南纬12.1度、东经91.5度
强度等级：一级热带气旋
最大风力：8级（18米/秒，相当于我国的热带风暴级）
中心气压：999百帕
参考位置：科科斯群岛偏西方向约580公里的洋面上
变化过程：过去24小时，“安格雷克”由10级减弱到8级
预报结论：“安格雷克”将以每小时5-10公里的速度向西南方向缓慢移动，强度逐渐增强。
图1 卫星红外监测图像（北京时间2024年01月22日14时00分）
-

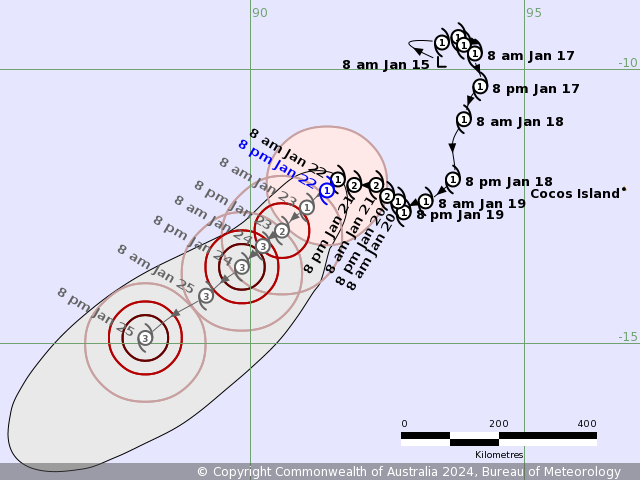

IDW27700 TROPICAL CYCLONE TECHNICAL BULLETIN: AUSTRALIA - WESTERN REGION Issued by AUSTRALIAN BUREAU OF METEOROLOGY TROPICAL CYCLONE WARNING CENTRE at: 1326 UTC 22/01/2024 Name: Tropical Cyclone Anggrek Identifier: 04U Data At: 1200 UTC Latitude: 12.2S Longitude: 91.4E Location Accuracy: within 20nm (35 km) Movement Towards: southwest (224 deg) Speed of Movement: 1 knots (3 km/h) Maximum 10-Minute Wind: 35 knots (65 km/h) Maximum 3-Second Wind Gust: 50 knots (95 km/h) Central Pressure: 999 hPa Radius of 34-knot winds NE quadrant: 70 nm (130 km) Radius of 34-knot winds SE quadrant: 60 nm (110 km) Radius of 34-knot winds SW quadrant: 60 nm (110 km) Radius of 34-knot winds NW quadrant: 70 nm (130 km) Radius of 48-knot winds NE quadrant: Radius of 48-knot winds SE quadrant: Radius of 48-knot winds SW quadrant: Radius of 48-knot winds NW quadrant: Radius of 64-knot winds: nm ( km) Radius of Maximum Winds: 20 nm (35 km) Dvorak Intensity Code: T3.0/3.0/S0.0/24HRS STT:S0.0/06HRS Pressure of outermost isobar: 1008 hPa Radius of outermost closed isobar: 180 nm (335 km) FORECAST DATA Date/Time : Location : Loc. Accuracy: Max Wind : Central Pressure (UTC) : degrees : nm (km): knots(km/h): hPa +06: 22/1800: 12.3S 91.2E: 035 (060): 040 (075): 996 +12: 23/0000: 12.5S 91.0E: 040 (075): 045 (085): 993 +18: 23/0600: 12.7S 90.8E: 045 (085): 050 (095): 990 +24: 23/1200: 12.9S 90.6E: 050 (090): 055 (100): 987 +36: 24/0000: 13.2S 90.2E: 055 (100): 070 (130): 975 +48: 24/1200: 13.6S 89.8E: 075 (140): 075 (140): 971 +60: 25/0000: 14.1S 89.2E: 095 (175): 075 (140): 972 +72: 25/1200: 14.9S 88.1E: 115 (210): 070 (130): 977 +96: 26/1200: 17.4S 84.4E: 160 (300): 060 (110): 986 +120: 27/1200: 19.8S 80.2E: 230 (425): 055 (100): 987 REMARKS: Tropical Cyclone Anggrek is expected to restrengthen as environmental conditions begin to improve. Position is based on animated visible satellite imagery and a 0930Z GMI 37 GHz microwave image. Confidence in the position is good. The GMI image showed a band of deep convection wrapping around the western and northern sides of the TC. Likewise, satellite imagery in the last 3 hours has shown discontinuous convective bands with relatively warm cloud tops wrapping around the low level centre. Dvorak DT is 2.5-3.0 based on a curved band of 0.5-0.6. MET is 3.0 based on a S trend with no adjustment to PAT. FT and CI are 3.0 based on MET. Objective aids have trended higher in recent hours. The latest objective aids are: ADT 51 knots, AiDT 43 knots, DPRINT 48 knots, DMINT 39 knots (all one-minute means). Intensity is maintained at 35 knots (10-min mean) given there has been no significant improvement in satellite features of the tropical cyclone. Tropical Cyclone Anggrek has been impacted by easterly wind shear and dry air. However the latest CIMSS wind shear estimate has reduced to 14 knots at 1200Z and is an indication that environmental conditions are beginning to improve. The combination of SSTs around 28 degrees C, increasing outflow due to an upper trough west of the system, decreasing wind shear and an inflow of mid-level moisture from the north should enable Anggrek to restrengthen. This intensification phase is supported by the majority of numerical models. The position of the upper trough is particularly supportive on Wednesday and Thursday, and the forecast is for Anggrek to intensify into a severe tropical cyclone (category 3). The slow westward movement of the system is due to a weak mid-latitude ridge to the south. The ridge strengthens to the southeast of the system from Wednesday and accelerates Anggrek towards the southwest. The system is forecast to move outside the Australian area of responsibility between 1800Z 23 January and 1800Z 24 January. Copyright Commonwealth of Australia == The next bulletin for this system will be issued by: 22/1930 UTC.
Time (AWST) Intensity Category Latitude
(decimal deg.)Longitude
(decimal deg.)Estimated Position
Accuracy (km)0hr 8 pm January 22 1 12.2S 91.4E 35 +6hr 2 am January 23 1 12.3S 91.2E 60 +12hr 8 am January 23 1 12.5S 91.0E 75 +18hr 2 pm January 23 2 12.7S 90.8E 85 +24hr 8 pm January 23 2 12.9S 90.6E 90 +36hr 8 am January 24 3 13.2S 90.2E 100 +48hr 8 pm January 24 3 13.6S 89.8E 140 +60hr 8 am January 25 3 14.1S 89.2E 175 +72hr 8 pm January 25 3 14.9S 88.1E 210 最后于 2024-01-22 21:30:00 被ygsj24编辑 ，原因： -

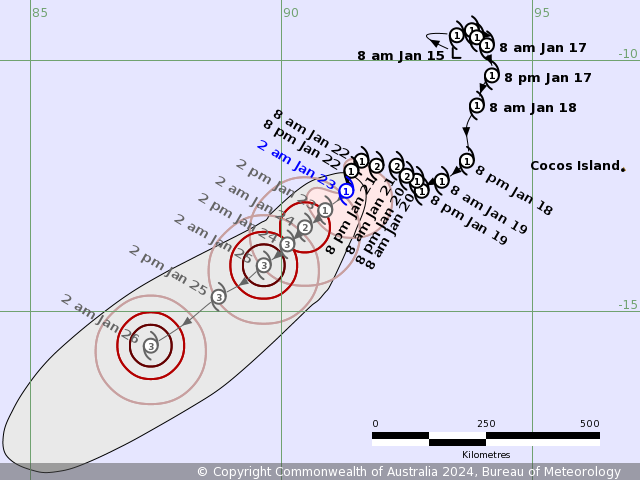

IDW27700 TROPICAL CYCLONE TECHNICAL BULLETIN: AUSTRALIA - WESTERN REGION Issued by AUSTRALIAN BUREAU OF METEOROLOGY TROPICAL CYCLONE WARNING CENTRE at: 1933 UTC 22/01/2024 Name: Tropical Cyclone Anggrek Identifier: 04U Data At: 1800 UTC Latitude: 12.6S Longitude: 91.3E Location Accuracy: within 20nm (35 km) Movement Towards: south southwest (198 deg) Speed of Movement: 3 knots (6 km/h) Maximum 10-Minute Wind: 35 knots (65 km/h) Maximum 3-Second Wind Gust: 50 knots (95 km/h) Central Pressure: 1001 hPa Radius of 34-knot winds NE quadrant: 40 nm (75 km) Radius of 34-knot winds SE quadrant: 60 nm (110 km) Radius of 34-knot winds SW quadrant: 50 nm (95 km) Radius of 34-knot winds NW quadrant: Radius of 48-knot winds NE quadrant: Radius of 48-knot winds SE quadrant: Radius of 48-knot winds SW quadrant: Radius of 48-knot winds NW quadrant: Radius of 64-knot winds: nm ( km) Radius of Maximum Winds: 25 nm (45 km) Dvorak Intensity Code: T2.5/3.0/S0.0/24HRS STT:W0.5/06HRS Pressure of outermost isobar: 1010 hPa Radius of outermost closed isobar: 150 nm (280 km) FORECAST DATA Date/Time : Location : Loc. Accuracy: Max Wind : Central Pressure (UTC) : degrees : nm (km): knots(km/h): hPa +06: 23/0000: 12.8S 91.1E: 035 (060): 035 (065): 1001 +12: 23/0600: 13.0S 90.9E: 040 (075): 040 (075): 999 +18: 23/1200: 13.2S 90.7E: 045 (085): 045 (085): 995 +24: 23/1800: 13.3S 90.5E: 050 (095): 050 (095): 992 +36: 24/0600: 13.7S 90.1E: 060 (110): 065 (120): 981 +48: 24/1800: 14.1S 89.7E: 080 (145): 075 (140): 973 +60: 25/0600: 14.7S 88.8E: 095 (180): 075 (140): 972 +72: 25/1800: 15.7S 87.4E: 120 (220): 070 (130): 977 +96: 26/1800: 18.3S 83.5E: 170 (320): 060 (110): 984 +120: 27/1800: 20.6S 79.1E: 240 (445): 050 (095): 990 REMARKS: Tropical Cyclone Anggrek has struggled to maintain intensity overnight. Position is based on animated satellite imagery and a 1552 ASCAT-C scatterometer pass. Confidence in the position is good. Satellite imagery in the last 6 hours has maintained the trend of discontinuous convective bands with relatively warm cloud tops wrapping around the low level centre. The recent ASCAT-C pass revealed a system with 25-30 knots around the low level centre with a small area of 35 knots in the southern semi-circle. Dvorak DT is 2.5 based on a curved band of 0.5. MET is 3.0 based on a D- trend with no adjustment to PAT. FT is 2.5 based on DT and CI is held at due to weakening trend. The latest objective aids are: ADT 51 knots, AiDT 42 knots, DPRINT 42 knots (all one-minute means). Intensity is maintained at 35 knots (10-min mean). Easterly wind shear has reduced from 18 knots at 0600Z to 10 knots at 1800Z and has allowed Anggrek to become more symmetrical in its cloud features. However the deep convection has been relatively weak and as a result Anggrek has struggled to maintain tropical cyclone intensity overnight. The forecast environment though is favourable for further development, with SSTs around 28 degrees C along the forecast track, increasing outflow due to an upper trough west of the system, further easing of wind shear and an inflow of mid-level moisture from the north. This intensification phase is supported by the majority of numerical models. The position of the upper trough is particularly supportive on Wednesday and Thursday and the forecast is for Anggrek to intensify into a severe tropical cyclone (category 3). The current south-southwest motion is due to Anggrek being caught in a weakness between a mid-level ridge over the eastern Indian Ocean and another over the western Indian Ocean. During the next few days the high associated with the ridge over the western Indian Ocean will strengthen to the southeast of Anggrek and accelerate it towards the southwest. Anggrek is forecast to move outside the Australian area of responsibility between 1800Z 23 January and 1800Z 24 January. Copyright Commonwealth of Australia == The next bulletin for this system will be issued by: 23/0130 UTC.
Time (AWST) Intensity Category Latitude
(decimal deg.)Longitude
(decimal deg.)Estimated Position
Accuracy (km)0hr 2 am January 23 1 12.6S 91.3E 35 +6hr 8 am January 23 1 12.8S 91.1E 60 +12hr 2 pm January 23 1 13.0S 90.9E 75 +18hr 8 pm January 23 1 13.2S 90.7E 85 +24hr 2 am January 24 2 13.3S 90.5E 95 +36hr 2 pm January 24 3 13.7S 90.1E 110 +48hr 2 am January 25 3 14.1S 89.7E 145 +60hr 2 pm January 25 3 14.7S 88.8E 180 +72hr 2 am January 26 3 15.7S 87.4E 220 -

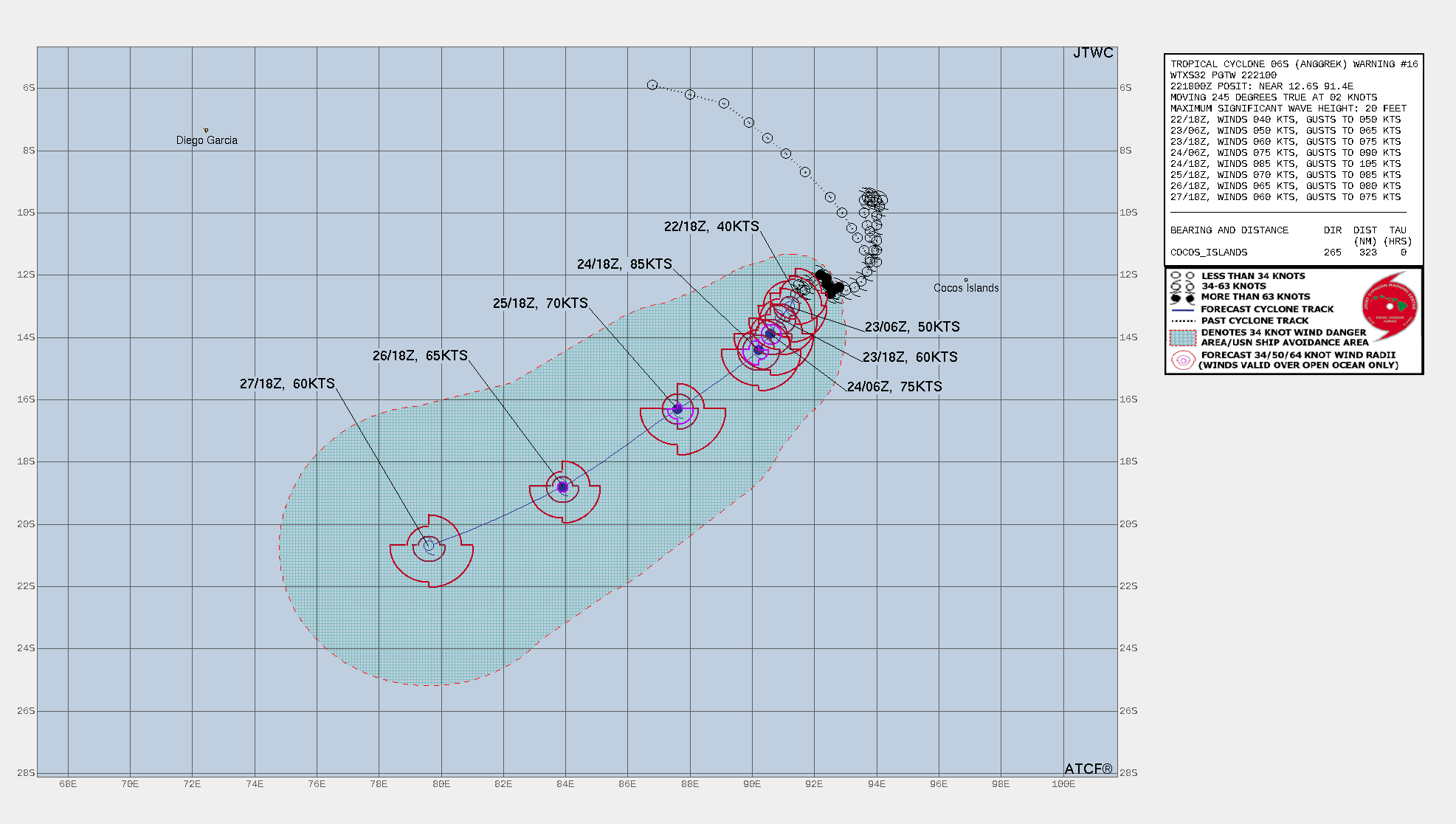

WTXS32 PGTW 222100 MSGID/GENADMIN/JOINT TYPHOON WRNCEN PEARL HARBOR HI// SUBJ/TROPICAL CYCLONE 06S (ANGGREK) WARNING NR 016// RMKS/ 1. TROPICAL CYCLONE 06S (ANGGREK) WARNING NR 016 01 ACTIVE TROPICAL CYCLONE IN SOUTHIO MAX SUSTAINED WINDS BASED ON ONE-MINUTE AVERAGE WIND RADII VALID OVER OPEN WATER ONLY --- WARNING POSITION: 221800Z --- NEAR 12.6S 91.4E MOVEMENT PAST SIX HOURS - 245 DEGREES AT 02 KTS POSITION ACCURATE TO WITHIN 060 NM POSITION BASED ON CENTER LOCATED BY SATELLITE PRESENT WIND DISTRIBUTION: MAX SUSTAINED WINDS - 040 KT, GUSTS 050 KT WIND RADII VALID OVER OPEN WATER ONLY RADIUS OF 034 KT WINDS - 050 NM NORTHEAST QUADRANT 060 NM SOUTHEAST QUADRANT 050 NM SOUTHWEST QUADRANT 030 NM NORTHWEST QUADRANT REPEAT POSIT: 12.6S 91.4E --- FORECASTS: 12 HRS, VALID AT: 230600Z --- 13.0S 91.2E MAX SUSTAINED WINDS - 050 KT, GUSTS 065 KT WIND RADII VALID OVER OPEN WATER ONLY RADIUS OF 050 KT WINDS - 020 NM NORTHEAST QUADRANT 020 NM SOUTHEAST QUADRANT 030 NM SOUTHWEST QUADRANT 020 NM NORTHWEST QUADRANT RADIUS OF 034 KT WINDS - 060 NM NORTHEAST QUADRANT 070 NM SOUTHEAST QUADRANT 060 NM SOUTHWEST QUADRANT 050 NM NORTHWEST QUADRANT VECTOR TO 24 HR POSIT: 215 DEG/ 02 KTS --- 24 HRS, VALID AT: 231800Z --- 13.4S 90.9E MAX SUSTAINED WINDS - 060 KT, GUSTS 075 KT WIND RADII VALID OVER OPEN WATER ONLY RADIUS OF 050 KT WINDS - 030 NM NORTHEAST QUADRANT 030 NM SOUTHEAST QUADRANT 030 NM SOUTHWEST QUADRANT 030 NM NORTHWEST QUADRANT RADIUS OF 034 KT WINDS - 060 NM NORTHEAST QUADRANT 070 NM SOUTHEAST QUADRANT 060 NM SOUTHWEST QUADRANT 040 NM NORTHWEST QUADRANT VECTOR TO 36 HR POSIT: 210 DEG/ 03 KTS --- 36 HRS, VALID AT: 240600Z --- 13.9S 90.6E MAX SUSTAINED WINDS - 075 KT, GUSTS 090 KT WIND RADII VALID OVER OPEN WATER ONLY RADIUS OF 064 KT WINDS - 020 NM NORTHEAST QUADRANT 020 NM SOUTHEAST QUADRANT 020 NM SOUTHWEST QUADRANT 020 NM NORTHWEST QUADRANT RADIUS OF 050 KT WINDS - 030 NM NORTHEAST QUADRANT 040 NM SOUTHEAST QUADRANT 040 NM SOUTHWEST QUADRANT 030 NM NORTHWEST QUADRANT RADIUS OF 034 KT WINDS - 060 NM NORTHEAST QUADRANT 080 NM SOUTHEAST QUADRANT 070 NM SOUTHWEST QUADRANT 040 NM NORTHWEST QUADRANT VECTOR TO 48 HR POSIT: 220 DEG/ 03 KTS --- EXTENDED OUTLOOK: 48 HRS, VALID AT: 241800Z --- 14.4S 90.2E MAX SUSTAINED WINDS - 085 KT, GUSTS 105 KT WIND RADII VALID OVER OPEN WATER ONLY RADIUS OF 064 KT WINDS - 000 NM NORTHEAST QUADRANT 020 NM SOUTHEAST QUADRANT 030 NM SOUTHWEST QUADRANT 020 NM NORTHWEST QUADRANT RADIUS OF 050 KT WINDS - 030 NM NORTHEAST QUADRANT 040 NM SOUTHEAST QUADRANT 040 NM SOUTHWEST QUADRANT 030 NM NORTHWEST QUADRANT RADIUS OF 034 KT WINDS - 060 NM NORTHEAST QUADRANT 080 NM SOUTHEAST QUADRANT 070 NM SOUTHWEST QUADRANT 040 NM NORTHWEST QUADRANT VECTOR TO 72 HR POSIT: 235 DEG/ 08 KTS --- 72 HRS, VALID AT: 251800Z --- 16.3S 87.6E MAX SUSTAINED WINDS - 070 KT, GUSTS 085 KT WIND RADII VALID OVER OPEN WATER ONLY RADIUS OF 064 KT WINDS - 010 NM NORTHEAST QUADRANT 030 NM SOUTHEAST QUADRANT 020 NM SOUTHWEST QUADRANT 000 NM NORTHWEST QUADRANT RADIUS OF 050 KT WINDS - 030 NM NORTHEAST QUADRANT 040 NM SOUTHEAST QUADRANT 030 NM SOUTHWEST QUADRANT 000 NM NORTHWEST QUADRANT RADIUS OF 034 KT WINDS - 050 NM NORTHEAST QUADRANT 090 NM SOUTHEAST QUADRANT 070 NM SOUTHWEST QUADRANT 030 NM NORTHWEST QUADRANT VECTOR TO 96 HR POSIT: 235 DEG/ 11 KTS --- LONG RANGE OUTLOOK: --- 96 HRS, VALID AT: 261800Z --- 18.8S 83.9E MAX SUSTAINED WINDS - 065 KT, GUSTS 080 KT WIND RADII VALID OVER OPEN WATER ONLY RADIUS OF 064 KT WINDS - 010 NM NORTHEAST QUADRANT 010 NM SOUTHEAST QUADRANT 010 NM SOUTHWEST QUADRANT 010 NM NORTHWEST QUADRANT RADIUS OF 050 KT WINDS - 020 NM NORTHEAST QUADRANT 030 NM SOUTHEAST QUADRANT 030 NM SOUTHWEST QUADRANT 020 NM NORTHWEST QUADRANT RADIUS OF 034 KT WINDS - 050 NM NORTHEAST QUADRANT 070 NM SOUTHEAST QUADRANT 060 NM SOUTHWEST QUADRANT 030 NM NORTHWEST QUADRANT VECTOR TO 120 HR POSIT: 245 DEG/ 11 KTS --- 120 HRS, VALID AT: 271800Z --- 20.7S 79.6E MAX SUSTAINED WINDS - 060 KT, GUSTS 075 KT WIND RADII VALID OVER OPEN WATER ONLY RADIUS OF 050 KT WINDS - 020 NM NORTHEAST QUADRANT 030 NM SOUTHEAST QUADRANT 030 NM SOUTHWEST QUADRANT 020 NM NORTHWEST QUADRANT RADIUS OF 034 KT WINDS - 060 NM NORTHEAST QUADRANT 080 NM SOUTHEAST QUADRANT 070 NM SOUTHWEST QUADRANT 040 NM NORTHWEST QUADRANT --- REMARKS: 222100Z POSITION NEAR 12.7S 91.3E. 22JAN24. TROPICAL CYCLONE 06S (ANGGREK), LOCATED APPROXIMATELY 320 NM WEST OF COCOS ISLANDS, HAS TRACKED WEST- SOUTHWESTWARD AT 02 KNOTS OVER THE PAST SIX HOURS. MINIMUM CENTRAL PRESSURE AT 221800Z IS 1000 MB. MAXIMUM SIGNIFICANT WAVE HEIGHT AT 221800Z IS 20 FEET. NEXT WARNINGS AT 230900Z AND 232100Z.// NNNN

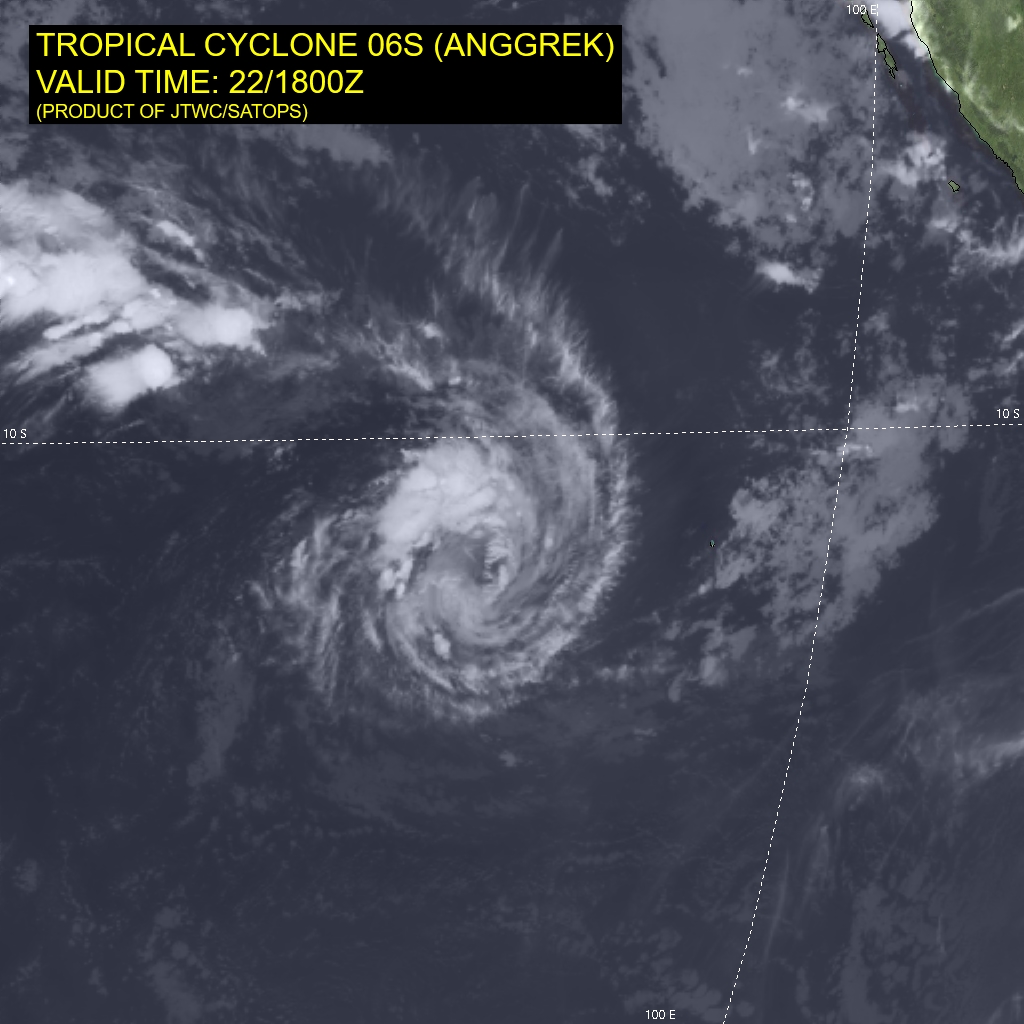

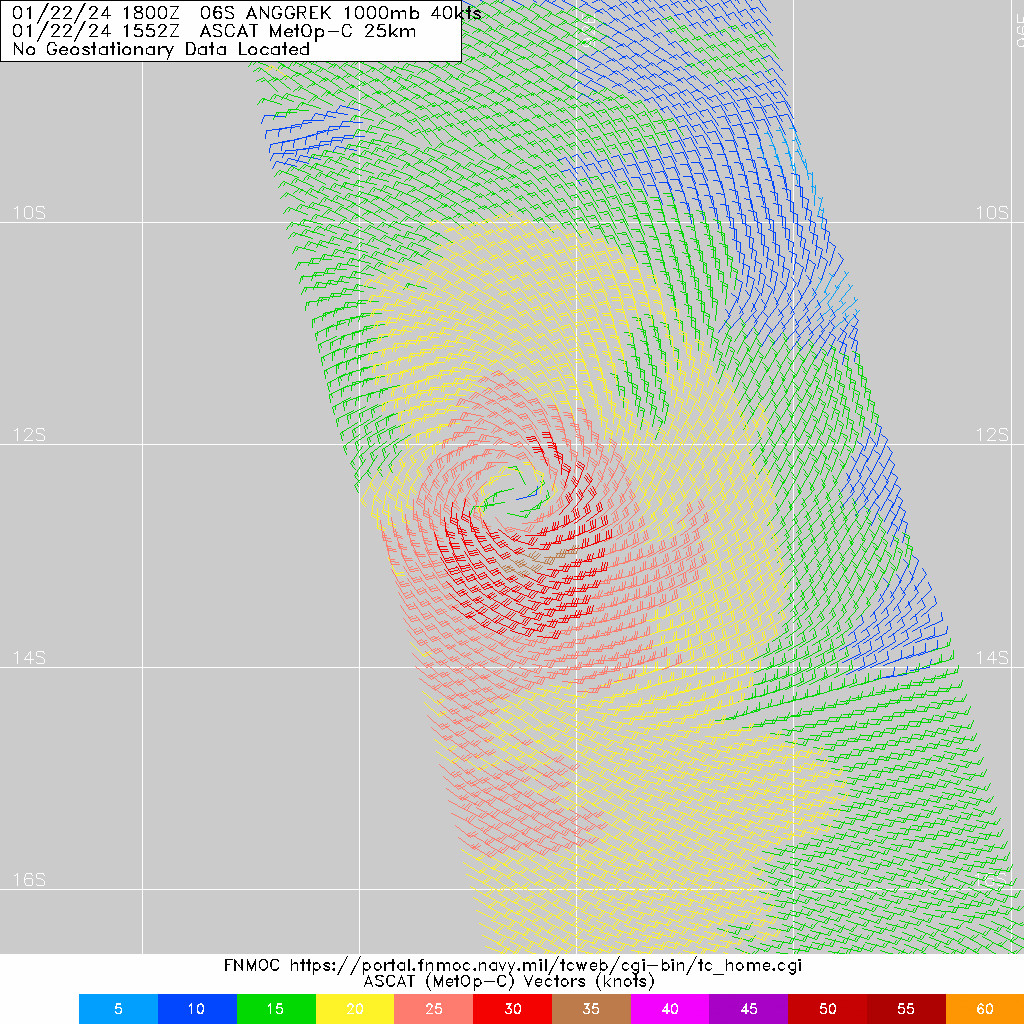

WDXS32 PGTW 222100 MSGID/GENADMIN/JOINT TYPHOON WRNCEN PEARL HARBOR HI// SUBJ/PROGNOSTIC REASONING FOR TROPICAL CYCLONE 06S (ANGGREK) WARNING NR 016// RMKS/ 1. FOR METEOROLOGISTS. 2. 6 HOUR SUMMARY AND ANALYSIS. SUMMARY: INITIAL POSITION: 12.6S 91.4E INITIAL INTENSITY: 40 KTS GEOGRAPHIC REFERENCE: 1164 NM EAST-SOUTHEAST OF DIEGO GARCIA MOVEMENT PAST 6 HOURS: WEST-SOUTHWESTWARD AT 02 KTS SIGNIFICANT WAVE HEIGHT: 20 FEET SATELLITE ANALYSIS, INITIAL POSITION AND INTENSITY DISCUSSION: ANIMATED MULTISPECTRAL SATELLITE IMAGERY (MSI) SHOWS TROPICAL CYLONE ANGREK IS STRUGGLING. THE CONVECTIVE BANDS ARE BECOMING FURTHER SEPARATED DUE TO DRY AIR ENTRAINEMENT AND CONVECTION HAS SHARPLY WANED OVER THE SOUTHERN HALF OF THE SYSTEM. UPWELLING AS A RESULT OF THE SLOW MOVEMENT OF THE SYSTEM IS ALSO WORKING AGAINST IT. THE JTWC DVORAK ASSESMENT HAS ALSO FALLEN TO 2.0/3.0 AT FIX TIME. THE POSITION AND INTENSITY ASSESSMENTS ARE BASED PRIMARILY ON THE A 221552Z ASCAT PASS. ANIMATED WATER VAPOR IMAGERY SHOWS SUBSTANTIAL SUPPRESSION OF OUTFLOW OVER THE WESTERN AND SOUTHERN QUADRANTS AND DECENT OUTFLOW OVER THE NORTHEAST QUADRANT. ALONG TRACK SEA SURFACE TEMPERATURES ARE FAVORABLE FOR A NEW SURGE IN DEVELOPMENT SHOULD THE SYSTEM MANAGE TO GET MOVING. INITIAL WIND RADII BASIS: SCATTEROMETER DATA FROM A 221552Z ASCAT. CURRENT STEERING MECHANISM: THE SYSTEM IS BOBBLING IN A WEAK STEERING ENVIRONMENT IN A COL BETWEEN THE NEAR EQUATORIAL RIDGE AND THE SUBTROPICAL RIDGE. AGENCY DVORAK AND AUTOMATED FIXES: PGTW: T3.0 - 45 KTS KNES: T3.5 - 55 KTS DEMS: T3.0 - 45 KTS APRF: T3.0 - 45 KTS CIMSS ADT: 51 KTS AT 221730Z FORECASTER ASSESSMENT OF CURRENT ENVIRONMENT: UNFAVORABLE VWS: 5-10 KTS SST: 27-28 CELSIUS OUTFLOW: WEAK EQUATORWARD ANALYSIS CONFIDENCE: INITIAL POSITION: MEDIUM INITIAL INTENSITY: MEDIUM INITIAL WIND RADII: MEDIUM 3. FORECAST REASONING. SIGNIFICANT FORECAST CHANGES: THERE ARE NO SIGNIFICANT CHANGES TO THE FORECAST FROM THE PREVIOUS WARNING. FORECAST DISCUSSION: TROPICAL CYCLONE ANGREK WILL DRIFT VERY SLOWLY ALONG A SOUTHWESTERLY BEARING OVER THE NEXT TWO DAYS AND STEADILY INTENSIFY IN A LOW SHEAR ENVIRONMENT. AFTER 241800Z THE SUBTROPICAL RIDGE WILL RETRACT, ALLOWING THE SYSTEM TO MOVE POLEWARD MORE RAPIDLY THUS EASING THE CONSTRAINT OF UPWELLING. THE SYSTEM IS EXPECTED TO PEAK IN INTENSITY NEAR THAT TIME BEFORE PLUNGING OCEAN HEAT CONTENT AND DRY AIR ENTRAINMENT WEAKEN THE SYSTEM. IT IS STILL EXPECTED TO MAINTAIN TYPHOON STRENGTH UNTIL THE VERY END OF THE FORECAST PERIOD. MODEL DISCUSSION: TRACK GUIDANCE IS UNANIMOUS ON THE SLOW SOUTHWESTERLY TRACK THROUGH THE FIRST 48 HOURS, THEN THE ALONG TRACK SPREAD INCREASES AS THE SYSTEM ENCOUNTERS THE SEASONAL SOUTHEASTERLIES AND GETS SHOVED BACK TOWARDS THE EQUATOR. THE JTWC FORECAST STAYS NEAR CONSENSUS WITH SLIGHT FAVOR SHOWN TOWARD THE ECMWF ENSEMBLE. THE INTENSITY GUIDANCE IS GROUND IN THE STATISTICAL DYNAMICAL (SHIPS) GUIDANCE BUT GOES SHARLY ABOVE THAT DURING THE 36 THROUGH 60 HOUR PERIOD DUE TO INPUT FROM THE HAFS-A COUPLED MODEL. FORECAST CONFIDENCE: TRACK 0 - 72 HR: MEDIUM TRACK 72-120 HR: MEDIUM INTENSITY 0 - 72 HR: MEDIUM INTENSITY 72-120 HR: MEDIUM// NNNN
最后于 2024-01-23 06:00:00 被ygsj24编辑 ，原因： -
IDW27700 TROPICAL CYCLONE TECHNICAL BULLETIN: AUSTRALIA - WESTERN REGION Issued by AUSTRALIAN BUREAU OF METEOROLOGY TROPICAL CYCLONE WARNING CENTRE at: 0120 UTC 23/01/2024 Name: Tropical Cyclone Anggrek Identifier: 04U Data At: 0000 UTC Latitude: 12.8S Longitude: 91.5E Location Accuracy: within 20nm (35 km) Movement Towards: south (179 deg) Speed of Movement: 2 knots (4 km/h) Maximum 10-Minute Wind: 35 knots (65 km/h) Maximum 3-Second Wind Gust: 50 knots (95 km/h) Central Pressure: 1001 hPa Radius of 34-knot winds NE quadrant: 40 nm (75 km) Radius of 34-knot winds SE quadrant: 60 nm (110 km) Radius of 34-knot winds SW quadrant: 50 nm (95 km) Radius of 34-knot winds NW quadrant: Radius of 48-knot winds NE quadrant: Radius of 48-knot winds SE quadrant: Radius of 48-knot winds SW quadrant: Radius of 48-knot winds NW quadrant: Radius of 64-knot winds: nm ( km) Radius of Maximum Winds: 25 nm (45 km) Dvorak Intensity Code: T2.5/3/0/S0.0/24HRS STT:S0.0/6HRS Pressure of outermost isobar: 1010 hPa Radius of outermost closed isobar: 180 nm (335 km) FORECAST DATA Date/Time : Location : Loc. Accuracy: Max Wind : Central Pressure (UTC) : degrees : nm (km): knots(km/h): hPa +06: 23/0600: 13.0S 91.4E: 035 (065): 040 (075): 998 +12: 23/1200: 13.3S 91.3E: 045 (080): 045 (085): 995 +18: 23/1800: 13.5S 91.2E: 050 (090): 045 (085): 995 +24: 24/0000: 13.7S 91.0E: 050 (095): 050 (095): 992 +36: 24/1200: 14.2S 90.7E: 060 (115): 060 (110): 985 +48: 25/0000: 14.6S 90.1E: 080 (150): 070 (130): 978 +60: 25/1200: 15.5S 88.9E: 100 (180): 065 (120): 983 +72: 26/0000: 16.7S 87.2E: 115 (210): 055 (100): 991 +96: 27/0000: 19.3S 83.1E: 160 (295): 050 (095): 992 +120: 28/0000: 20.8S 78.7E: 235 (430): 045 (085): 995 REMARKS: Tropical Cyclone Anggrek has struggled to maintain intensity overnight. Position is based on 2138 UTC microwave pass and animated IR imagery which positioned the centre further east than before. Confidence in the position is good. Satellite imagery in the last 6 hours has maintained the trend of discontinuous convective bands with relatively warm cloud tops wrapping around the low level centre. The recent ASCAT-C pass revealed a system with 25-30 knots around the low level centre with a small area of 35 knots in the southern semi-circle. Dvorak DT is 2.5 based on a curved band of 0.5. MET is 2.5 based on a S trend with no adjustment to PAT. FT is 2.5 based on DT and CI is held at due to weakening trend. The latest objective aids are: ADT 45 knots, AiDT 39 knots, DPRINT 43 knots (all one-minute means). Intensity is maintained at 35 knots (10-min mean). Shear has remained low and Anggrek has symmetrical cloud features. However the deep convection has been relatively weak and as a result Anggrek has struggled to maintain tropical cyclone intensity overnight. The forecast environment though is favourable for further development, with SSTs around 28 degrees C along the forecast track, increasing outflow due to an upper trough west of the system, further easing of wind shear and an inflow of mid-level moisture from the north. This intensification phase is supported by the majority of numerical models. The position of the upper trough is particularly supportive on Wednesday and the start of Thursday and the forecast is for Anggrek to intensify into a severe tropical cyclone (category 3). During Thursday, shear increases and the system is expected to weaken slowly. The current slow southward motion is due to Anggrek being caught in a weakness between a mid-level ridge over the eastern Indian Ocean and another over the western Indian Ocean. During the next few days the high associated with the ridge over the western Indian Ocean will strengthen to the southeast of Anggrek and accelerate it towards the southwest. Anggrek is forecast to move outside the Australian area of responsibility sometime between 0000Z 24 January and 0000Z 26 January. Copyright Commonwealth of Australia == The next bulletin for this system will be issued by: 23/0730 UTC.
Time (AWST) Intensity Category Latitude
(decimal deg.)Longitude
(decimal deg.)Estimated Position
Accuracy (km)0hr 8 am January 23 1 12.8S 91.5E 35 +6hr 2 pm January 23 1 13.0S 91.4E 65 +12hr 8 pm January 23 1 13.3S 91.3E 80 +18hr 2 am January 24 1 13.5S 91.2E 90 +24hr 8 am January 24 2 13.7S 91.0E 95 +36hr 8 pm January 24 2 14.2S 90.7E 115 +48hr 8 am January 25 3 14.6S 90.1E 150 +60hr 8 pm January 25 3 15.5S 88.9E 180 +72hr 8 am January 26 2 16.7S 87.2E 210 最后于 2024-01-23 09:35:00 被ygsj24编辑 ，原因： -
全球热带气旋监测公报
“安格雷克”将原地少动
时 间：23日08时（北京时）
海 域：澳大利亚附近海域
命 名：“安格雷克”，ANGGREK
中心位置：南纬12.8度、东经91.5度
强度等级：一级热带气旋
最大风力：8级（18米/秒，相当于我国的热带风暴级）
中心气压：1001百帕
参考位置：澳大利亚西澳大利亚州埃克斯茅斯西偏北方向约2600公里的洋面上
变化过程：过去24小时，“安格雷克”强度维持不变
预报结论：“安格雷克”将原地少动，强度逐渐增强。

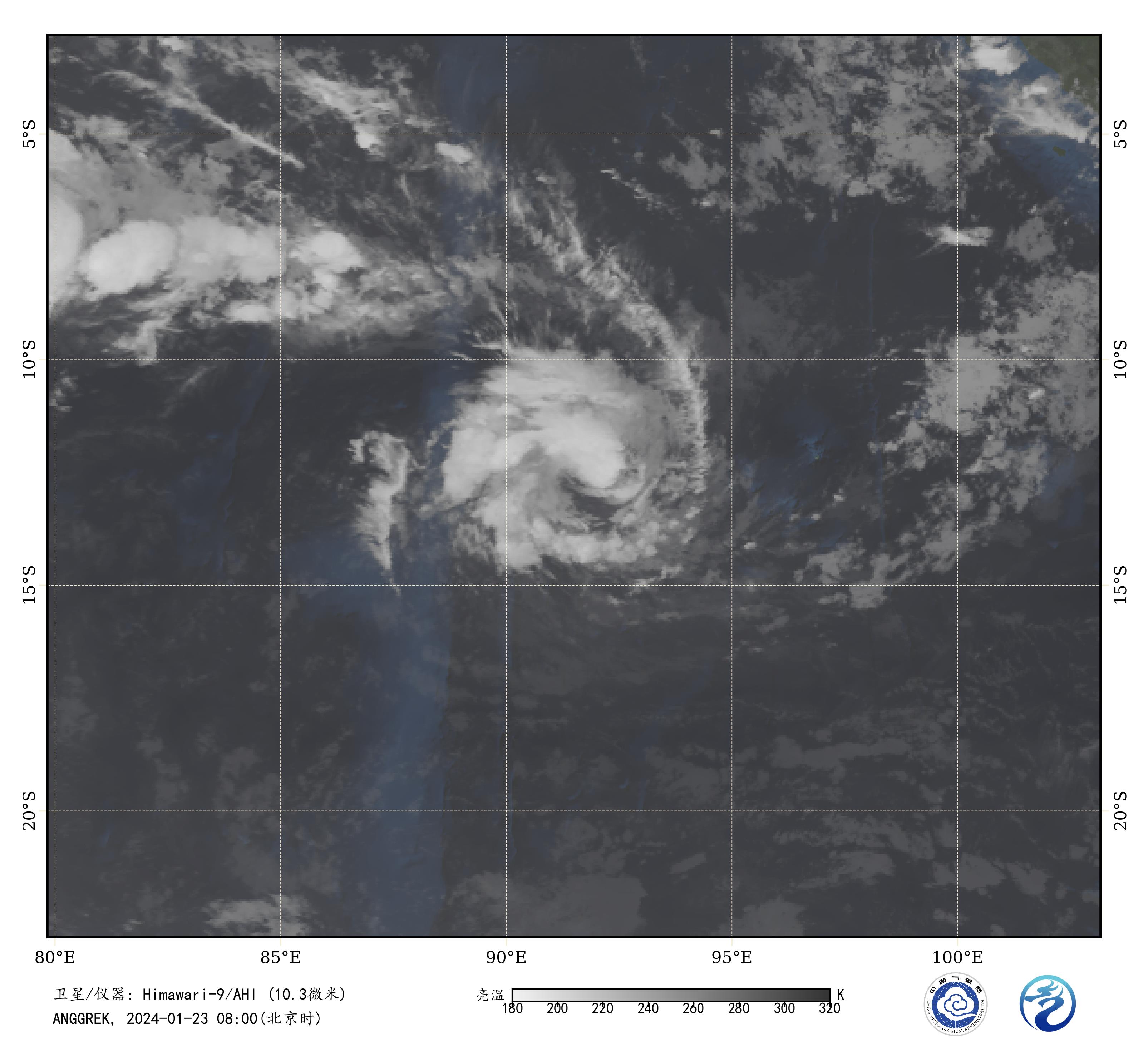

图1 卫星红外监测图像（北京时间2024年01月23日08时00分）
-

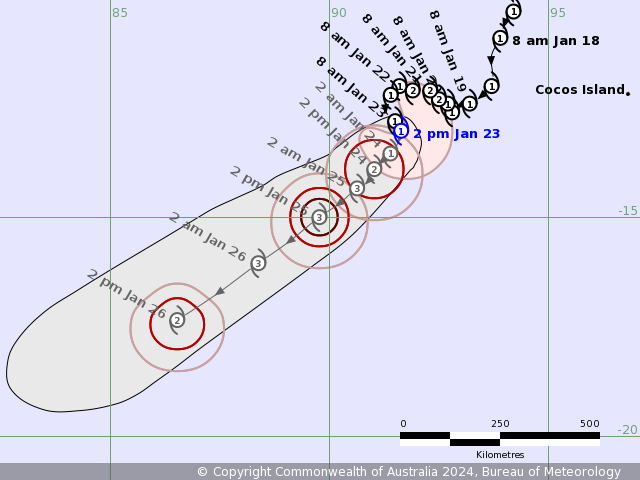

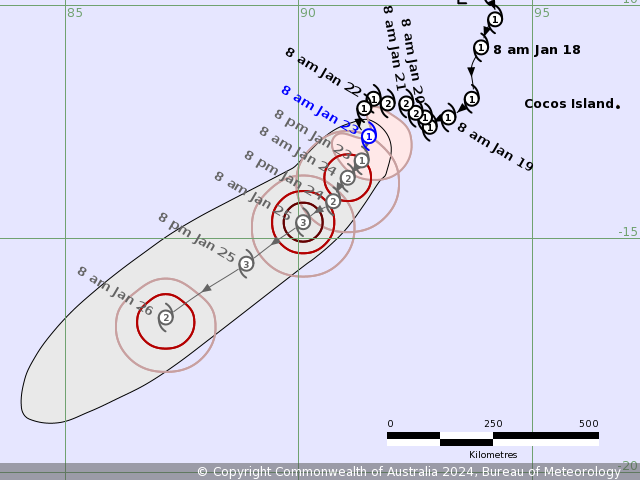

IDW27700 TROPICAL CYCLONE TECHNICAL BULLETIN: AUSTRALIA - WESTERN REGION Issued by AUSTRALIAN BUREAU OF METEOROLOGY TROPICAL CYCLONE WARNING CENTRE at: 0711 UTC 23/01/2024 Name: Tropical Cyclone Anggrek Identifier: 04U Data At: 0600 UTC Latitude: 13.0S Longitude: 91.6E Location Accuracy: within 20nm (35 km) Movement Towards: south southeast (148 deg) Speed of Movement: 3 knots (5 km/h) Maximum 10-Minute Wind: 40 knots (75 km/h) Maximum 3-Second Wind Gust: 55 knots (100 km/h) Central Pressure: 998 hPa Radius of 34-knot winds NE quadrant: 70 nm (130 km) Radius of 34-knot winds SE quadrant: 70 nm (130 km) Radius of 34-knot winds SW quadrant: 60 nm (110 km) Radius of 34-knot winds NW quadrant: Radius of 48-knot winds NE quadrant: Radius of 48-knot winds SE quadrant: Radius of 48-knot winds SW quadrant: Radius of 48-knot winds NW quadrant: Radius of 64-knot winds: nm ( km) Radius of Maximum Winds: 25 nm (45 km) Dvorak Intensity Code: T3.0/3.0/S0.0/24HRS STT:D0.5/06HRS Pressure of outermost isobar: 1010 hPa Radius of outermost closed isobar: 150 nm (280 km) FORECAST DATA Date/Time : Location : Loc. Accuracy: Max Wind : Central Pressure (UTC) : degrees : nm (km): knots(km/h): hPa +06: 23/1200: 13.3S 91.6E: 035 (065): 045 (085): 995 +12: 23/1800: 13.5S 91.4E: 045 (080): 045 (085): 995 +18: 24/0000: 13.7S 91.2E: 050 (090): 050 (095): 992 +24: 24/0600: 13.9S 91.0E: 050 (095): 055 (100): 989 +36: 24/1800: 14.3S 90.6E: 065 (120): 065 (120): 981 +48: 25/0600: 15.0S 89.8E: 085 (155): 070 (130): 979 +60: 25/1800: 16.0S 88.4E: 105 (195): 070 (130): 980 +72: 26/0600: 17.3S 86.5E: 125 (230): 060 (110): 988 +96: 27/0600: 19.7S 82.7E: 185 (345): 050 (095): 992 +120: 28/0600: 21.1S 78.2E: 250 (465): 045 (085): 995 REMARKS: Tropical Cyclone Anggrek has a slowly improving cloud signature indicating some strengthening. Position is based on 0341 UTC microwave pass and animated visible imagery. Confidence in the position is good. Satellite imagery in the last 6 hours has shown improved curvature but little increase in the depth of convection. The recent ASCAT-C pass revealed a system with > 35 knots to the northeast through to south-southwest of the low level centre. Dvorak DT is 3.0 based on a curved band of 0.7, but with warm cloud tops. MET is 2.5 based on a W- trend, PAT adjusted to 3.0. FT is and CI is 3.0 based on DT and PAT. The latest objective aids are: ADT 45 knots, AiDT 40 knots, DPRINT 44 knots (all one-minute means). Intensity is 40 knots (10-min mean). Shear is low and Anggrek has fairly symmetrical cloud features. However the deep convection has been relatively weak and as a result Anggrek is still only a category 1 system. The forecast environment is favourable for further development, with SSTs around 28 degrees C along the forecast track, increasing outflow due to an upper trough west of the system, further easing of wind shear and an inflow of mid-level moisture from the north. This intensification phase is supported by the majority of numerical models. The position of the upper trough is particularly supportive on Wednesday and the start of Thursday and the forecast is for Anggrek to intensify into a severe tropical cyclone (category 3). During Thursday, shear increases and the system is expected to plateau in intensity then start to weaken on Friday. There remains some ensemble members which continue strengthening during this period. The current slow southward motion is due to Anggrek being caught in a weakness between a mid-level ridge over the eastern Indian Ocean and another over the western Indian Ocean. During the next few days the high associated with the ridge over the western Indian Ocean will strengthen to the southeast of Anggrek and accelerate it towards the southwest. Anggrek is forecast to move outside the Australian area of responsibility sometime between 0000Z 24 January and 0000Z 26 January. Copyright Commonwealth of Australia == The next bulletin for this system will be issued by: 23/1330 UTC.
Time (AWST) Intensity Category Latitude
(decimal deg.)Longitude
(decimal deg.)Estimated Position
Accuracy (km)0hr 2 pm January 23 1 13.0S 91.6E 35 +6hr 8 pm January 23 1 13.3S 91.6E 65 +12hr 2 am January 24 1 13.5S 91.4E 80 +18hr 8 am January 24 2 13.7S 91.2E 90 +24hr 2 pm January 24 2 13.9S 91.0E 95 +36hr 2 am January 25 3 14.3S 90.6E 120 +48hr 2 pm January 25 3 15.0S 89.8E 155 +60hr 2 am January 26 3 16.0S 88.4E 195 +72hr 2 pm January 26 2 17.3S 86.5E 230
